Comment Diagrams are a new comment media option accessible from the library. This feature enables you to attach diagrams to comments, which will automatically be included in the comment's media when used in a report.

Add Diagrams

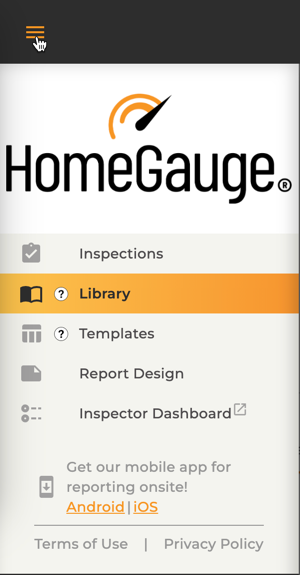

1. Open Library in the Web Report Writer browser

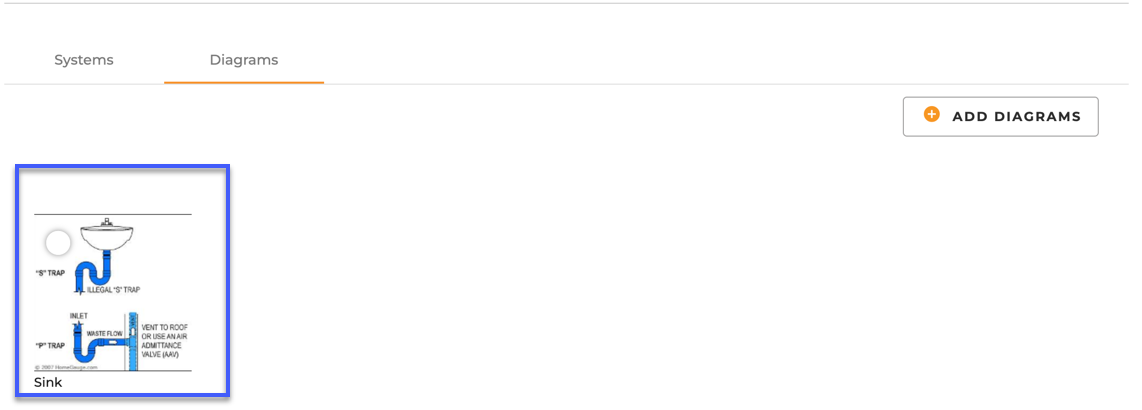

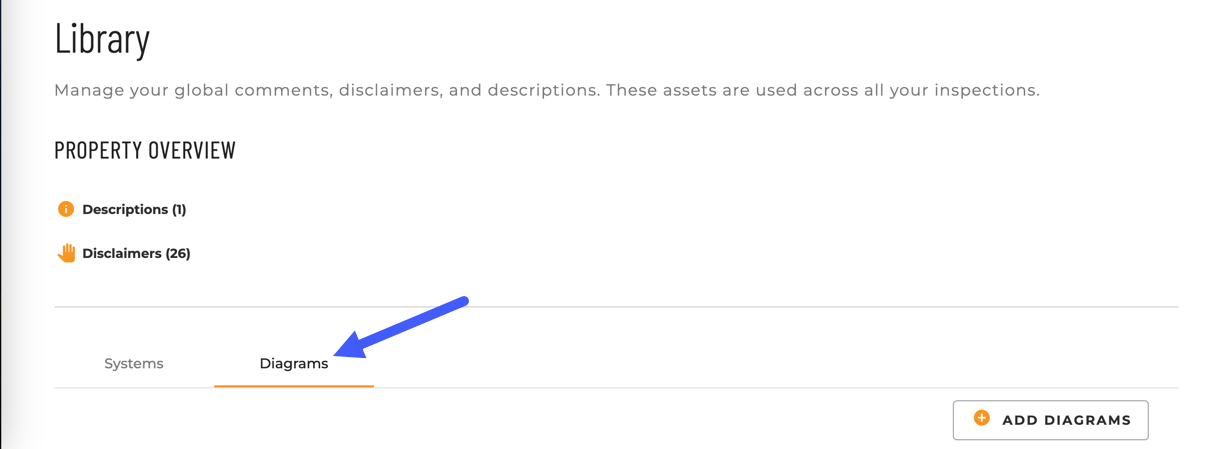

2. Click Diagrams Tab
3. Click Add Diagrams, and browse your device for photos


   If you have the Desktop Software installed, you can find some default drawings you can use as diagrams C:\Users\ExampleUser\Documents\HomeGauge\Drawing

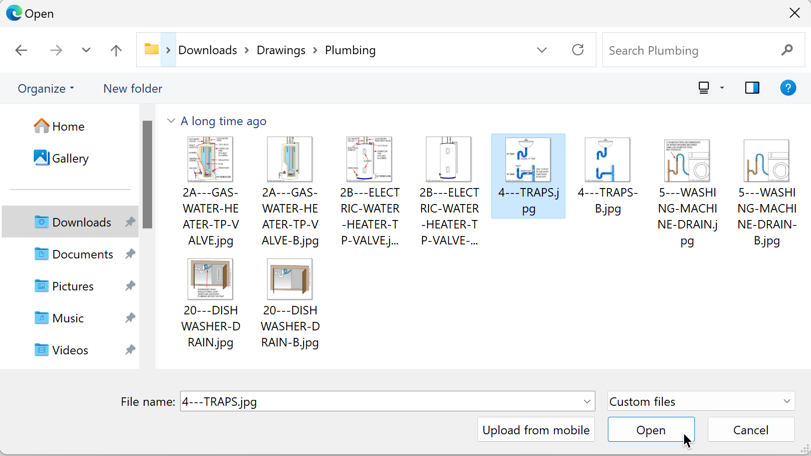

4. Click to select one item, Shift + Click to select multiple items, or Control + Click to select individual items. Then click Open to add your choices.

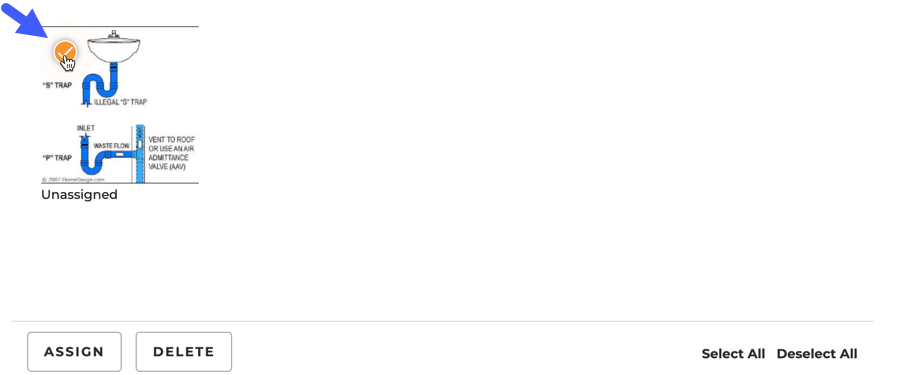

5. Once added, click the top left circle in the diagram image to select which photos you would like to assign
6. Click Assign and select the comment to which the diagram will be assigned. Confirm your choice by clicking Done.


   The same Diagram can be added to multiple comments simultaneously. Select all the comments you would like that Diagram to be assigned, then click Done.


7. When assigned, Diagrams will list the Item they are included in under the image

Edit or Delete Diagrams

You can assign diagrams to additional comments and remove or delete the assignments.

1. Click the circle in the top left corner of the diagram
2. Select Assign, Remove All Assignments, or Delete, depending on the action you want to complete

Viewing and Adding Diagrams from Comments

1. Open Library in the Web Report Writer browser
2. Under the System Tab, click the System you would like to edit

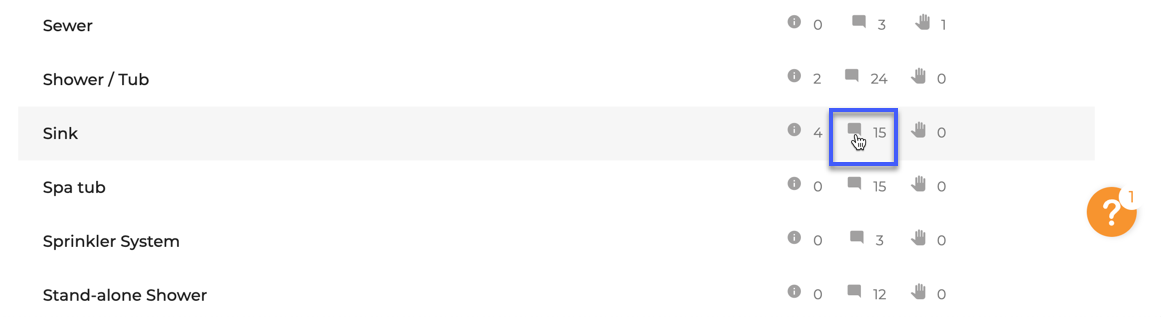

3. Click to view an Item’s Comments

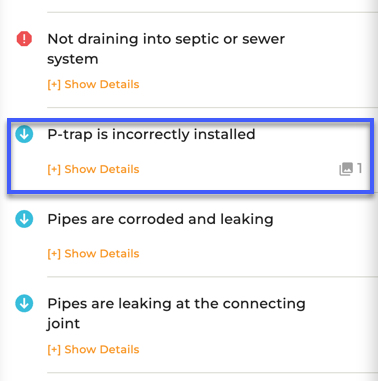

4. Comments with Diagrams already assigned will have a picture icon denoting how many diagrams are assigned to it
5. Click on Show Details to view, Edit Comments, or Add diagrams
6. Diagrams can be removed from the Comment by hovering over the diagram and clicking the X (Note: The help text will say remove)

7. New Diagrams can be assigned to the comment by clicking Add Diagrams
8. After clicking Add Diagrams, a slide-out menu will appear. The slide-out menu will allow you to view all existing and Add Diagrams.
9. Click Add Diagrams to browse for an image to be assigned to the comment you are editing. Click to choose one item, Shift + Click to choose multiple items, or Control + Click to select individual items. Then click Open to add your choices to the comment you are editing.
10. The diagram will be assigned to the comment you are editing, and the item to which the diagram is assigned will be listed

Using Diagrams in an Inspection Report

After assigning diagrams to comments, they will automatically be added to a report when that comment is selected.

1. In an inspection report, open an item
2. Click Add Comment
3. Comments with Diagrams already assigned will have a picture icon denoting how many diagrams are assigned to it

4. Adding a comment with an assigned diagram will add the diagram to the comment's media. The diagram is now a part of the comment media. It can be annotated or removed from the comment for that report.

   Diagrams added to the report will not appear under the Media Tab. This decision was made with inspector input to keep inspection photos separate from diagrams and not to clutter the Media Tab.
