Components are an essential part of these templates, allowing you to structure your report according to your needs. In this support article, we'll guide you through adding, editing, excluding, duplicating, and deleting complements.
Add Component to Template
If you need to add a completely new component to your Desktop Report Writer template, follow these simple steps:

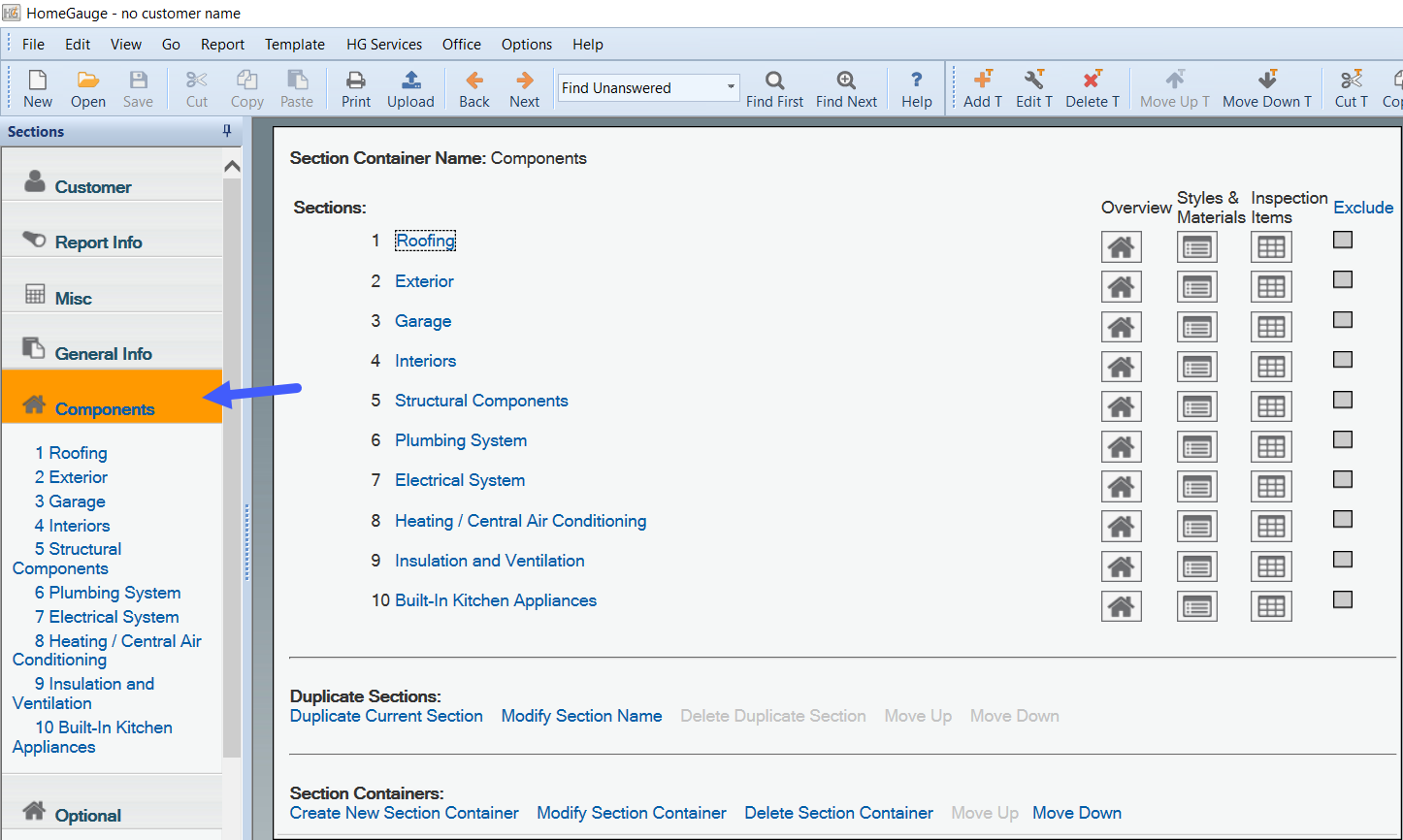

- Click Components
- Click Add T

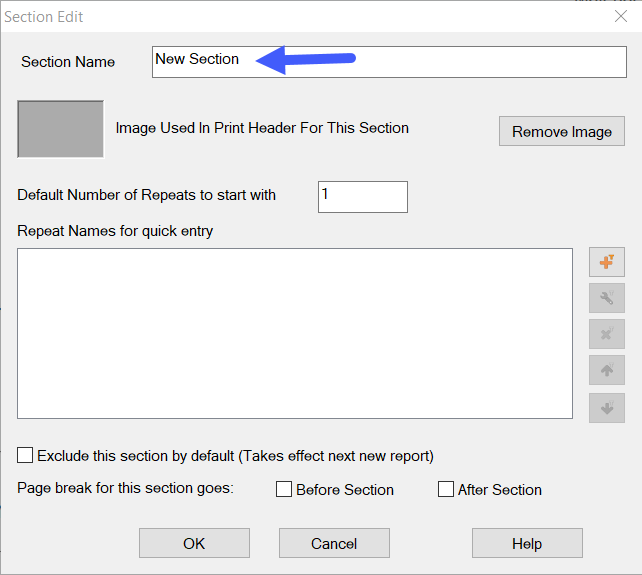

- Give the Category a name. Other parts of this window are covered below.
- Click OK. Your new component appears at the bottom of the components list
- Click Save T
Copy a Component
Copying a component allows you to replicate inspection items, styles, materials, and comments. Follow these steps to copy a component:
- Click Components
- Click the name of the component you would like to copy. It will have aheck in the check box when selected.

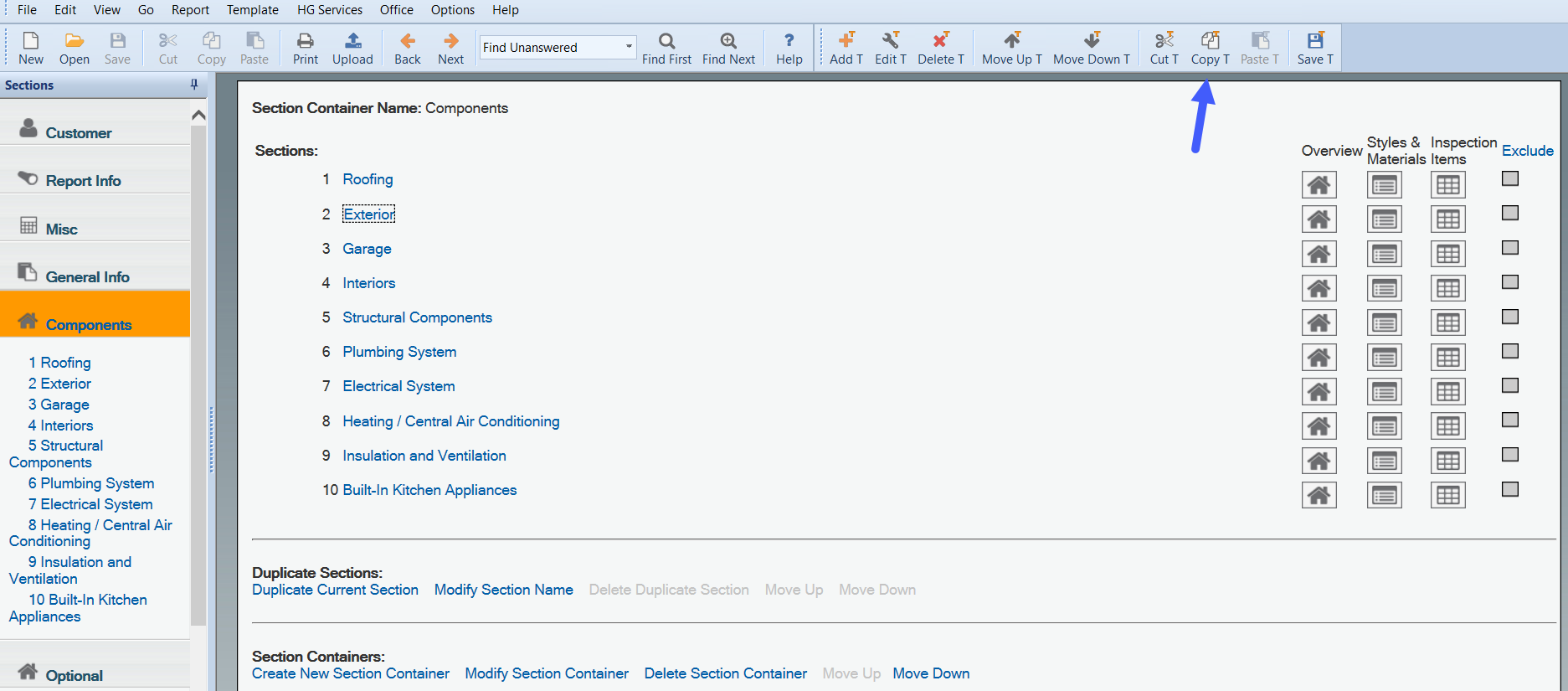

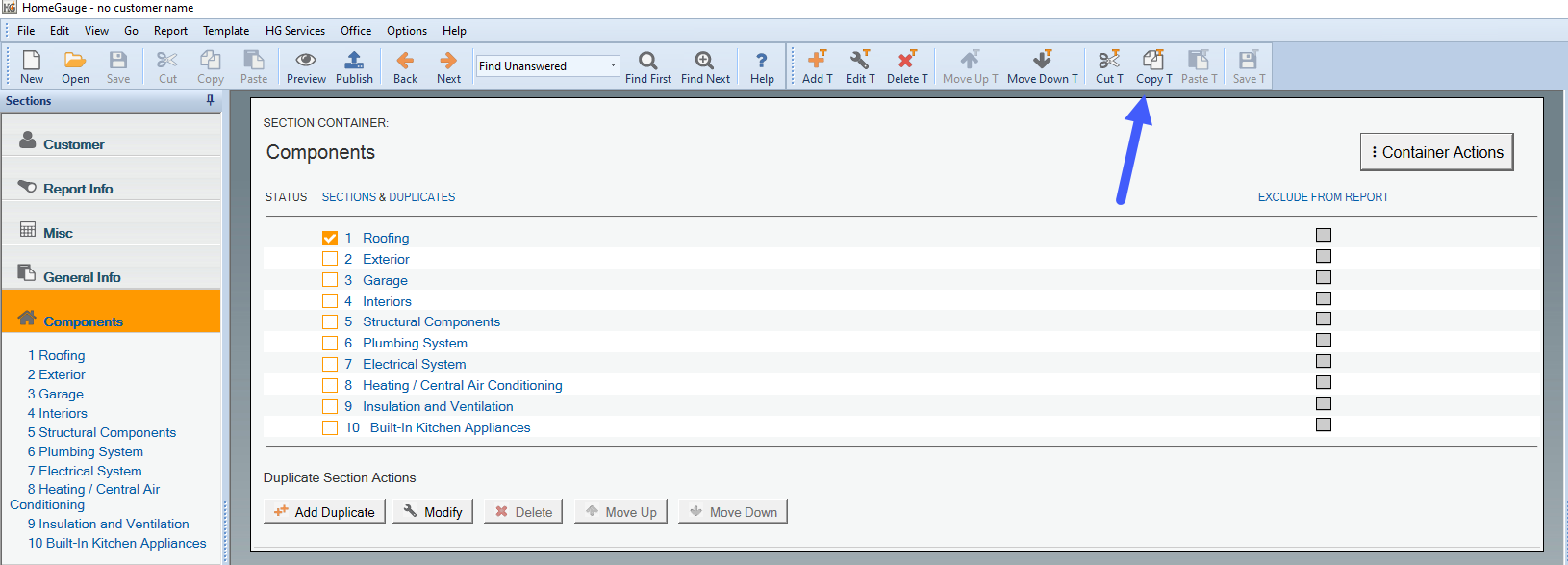

- Click Copy T
- Click Paste T
- Your new component will appear at the bottom of the components list
- Click Save T
Edit Component
To make changes to an existing component in your Desktop Report Writer template, follow these steps:
- Click Components
- Click the name of the component you would like to edit. It will have a check in the check box when selected.
- Click Edit T
- Make your desired changes, then click OK.
- Click Save T
To exclude the component by default
When starting a new report with your template, you can set a component to be excluded by default. Follow these steps to achieve this:
- Follow steps 1-3 in the Edit Component in the Template section.

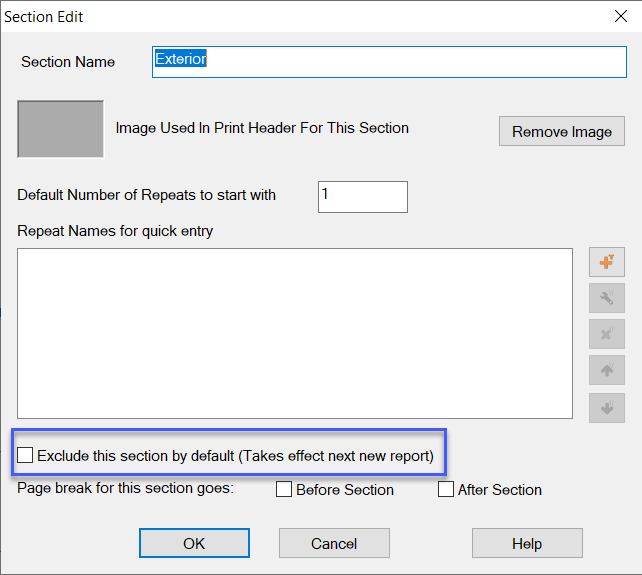

- Check the Exclude this section by default checkbox. Click OK.
- Click Save T or File > Save Template to save your change.
- when starting a new report with this template, your component will be excluded by default.
Section Image
To customize the image associated with a section in your template, use the following steps:
- Follow steps 1-3 in the above Edit Component section

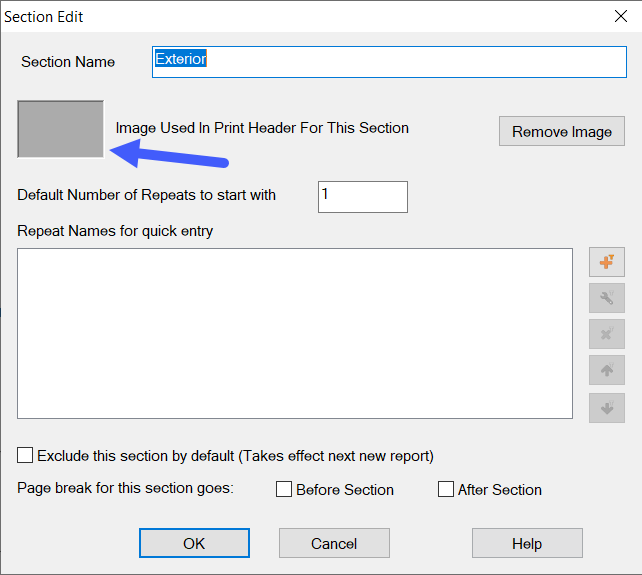

- Click the gray box on the left side of the window.
- Locate and open the image you would like to use. This image should be a JPG or GIF file no larger than 24x24 pixels.
- Click OK
- Click Save T
To Duplicate Components
Duplicating a component duplicates both the component itself and its inspection items. This is useful for personalizing reports by adding duplicate sections for various elements. Multi-unit homes can duplicate the "units" section. Here's how:
- Follow steps 1-3 in the Edit Component section of this article

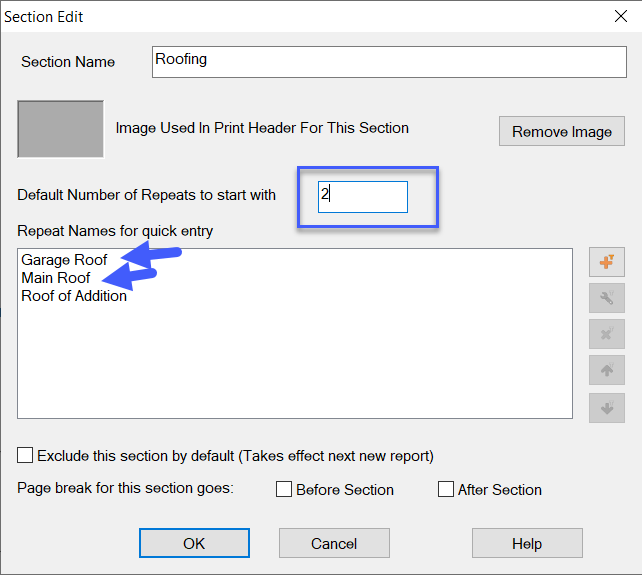

- Click the input box after Default Number of Repeats to start with.
- The number you enter will pull that many Repeat Names listed below onto the report to start with. The default is 1, which will not pull any repeats. You can add or edit repeats as needed.
- To create new Repeats, click the + button on the right-hand side of the Section Edit window.
- To edit Repeats, click the Edit Wrench on the right-hand side of the Section Edit window.
- To move the order of Repeats up or down to be selected, use the Up and Down Arrows on the right-hand side of the Section Edit window.
- Click OK
- Click Save T. Note: Since this is a template change, the duplicated components will not be visible on the current report. You will need to start a new report using this template.
Delete Component from Template
If you need to remove a component from your HomeGauge template, follow these steps:

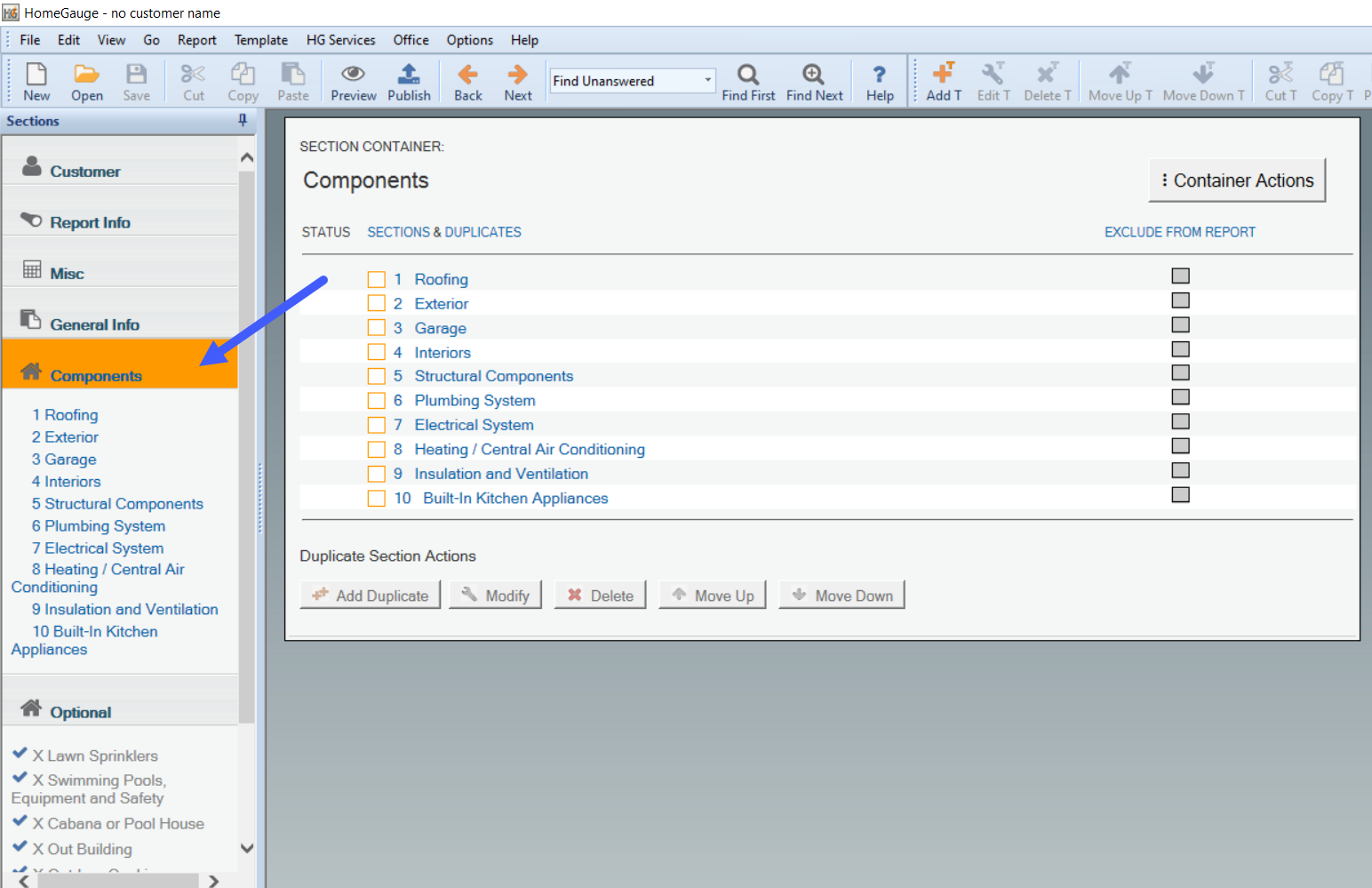

- Click Components
- Click the name of the component you would like to delete. It will have a dashed border when selected.
- Click Delete T, located in the menu of large icons near the top of the screen
- Click OK. The component and its inspection items are removed
- Click Save T
